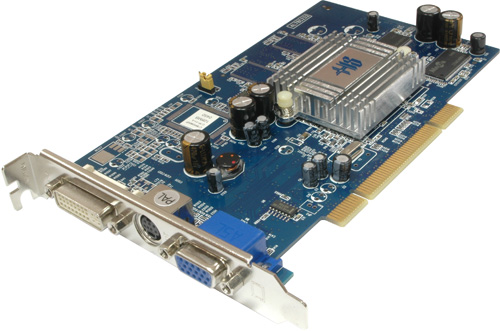

HIS 9250 256MB (128bit) PCI
  • H925H_500.jpg
  • 9250_PCI_3DBox_250.jpg
Référence H925H256RP-R
H925H256RPN-R
Code EAN 4897005359143
Refroidissement Heatsink
GPU 9250
Fréquence GPU 240 MHz
Fréquence mémoire 332 MHz
Capacité mémoire 256 MB
Type de mémoire DDR
Interface mémoire 128 bit
Interface PCI
Dimensions de la carte 18 X 12.1 X 2.2 cm
Dimensions du la boite 21.5 x 34 x 5.4 cm
Poids de la boite 0.25 kg
Availability Available in some region only

  • ATI Premium Graphics™
  • DirectX 9
  • DVI
  • VGA
  • TV-Out
  • Retail Pack
CHIPSET FEATURES
  • Powered by ATI Radeon 9250 GPU - 240MHz
  • 256MB-128bit DDR memory - 400MHz
  • Four parallel pixel pipelines
  • One parallel vertex processing engines
  • SMARTSHADERTM 1.0
  • SMOOTHVISIONTM 1.0
  • TRUEFORMTM 1.0
  • HYPER ZTM II
  • VIDEO IMMERSIONTM II
  • FULLSTREAMTM
  • PCI
  • DirectX® 9 compatible and OpenGL® supported
  • VGA, TV-Out and DVI-I supported
HIS PRODUCTS ADVANTAGE
  • Full Input/Output interface options
  • Platinum packing with software bundle
  • Classic packing with economic cost
ACCESSORIES
SOFTWARE BUNDLED



Model Name HIS 9250 256MB (128bit) PCI
Chipset Radeon 9250 Series
ASIC RV280
Pixel Pipelines 4
Vertex Engines 1
Manu. Process (Micron) 150nm
Max. Resolution 1920x1200 (single-link DVI)
Memory Size (MB) 256MB
Memory Type DDR
RAMDAC (MHz) 400
Engine CLK (MHz) 240
Memory CLK (MHz) 400
Memory Interface (bit) 128
Max. Resolution 2048x1536
Bus Interface PCI
VGA Yes
2nd VGA No
DVI Yes
2nd DVI No
TV-out Yes
HDTV (YPrPb component output) No
Video-in No
TV Tuner No
FM Tuner No

Redefining Realism and experience dazzling visuals

HIS Excalibur 9250 delivers a dazzling visual experience with the highest performance in its class, Driven by an advanced Quad-pipe rendering architecture, full support for the PCI standard and programmable geometry and texture engines.
