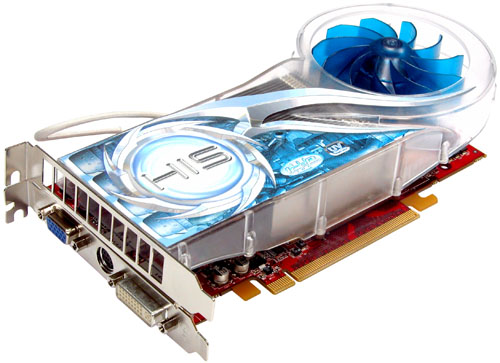

HIS X800XL IceQ II Turbo 256MB PCIe
  • X800IceQIIUV500
  • X800XLIceQII3DBox250
Product Code HX80XLQT256-3TOE
Cooler
GPU 800XL
Core Clock 432 (Turbo) MHz
Memory Clock 1000 (Turbo) MHz
Memory Size 256 MB
Memory Type GDDR3
Memory Interface 256 bit
Interface PCIe
Availability Discontinued




CHIPSET FEATURES
  • R430 0.11um process
  • Dual integrated display controllers
  • Dual integrated 10 bit per channel 400 MHz DACs
  • Integrated 165MHz TMDS transmitter (DVI 1.0 / HDMI compliant and HDCP ready)
  • Integrated TV Output support up to 1024x768 resolution
  • YPrPb component output for HDTV display connection
  • Single and dual link external TMDS transmitter support for high resolution and/or multi-monitor DVI configurations
  • DirectX® 9 and OpenGL® supported
HIS PRODUCTS ADVANTAGE
  • Fast: HIS's intelligent Cooling technology automatically adjusts IceQII fan speed base on X800's loading and temperature to achieve best performance
  • Quiet: Less than 20dB
  • Cool: -11°C cooler than original cooling fan
  • All Cool: Outstanding IceQII cooling performance extends the card life with UV Sensitive effect
  • HIS iTURBO: Overclock the graphic card safety, with the balance of the best performance and cooling effect
  • HIS delivers Faster, Cooler, Quieter plus the best quality product!
  • Platinum packing with software bundle
  • Professional customer service and technical support
ACCESSORIES
SOFTWARE BUNDLED
  • FlatOut
  • Microsoft Dungeon Siege Full
  • 3D Album PicturePro
  • PowerDirector 3 SE Plus
  • Power2Go 4

  • (Bundle items are subject to change without prior notice)
CABLE/ADAPTOR BUNDLED
  • S-Video Cable
  • RCA Cable
  • Conversion connecter Mini-Din to RCA
  • HDTV Output cable
  • DVI to VGA Adaptor
Model Name
HIS X800XL IceQ II Turbo 256MB PCIe
Chipset
Radeon X800 PCIe Series
ASIC
R430
Pixel Pipelines
16
Vertex Engines
Manu. Process (Micron)
110nm
Transistor
160M
Fill Rate
6912MTexel/s
Memory Size (MB)
256
Memory Type
GDDR3
RAMDAC (MHz)
400 Dual
Engine CLK (MHz)
432 (Turbo)
Memory CLK (MHz)
1000 (Turbo)
Memory Interface (bit)
256
Memory Bandwidth
32.0GB/s
Max. Resolution
2048x1536
Bus Interface
PCIe
VGA
Yes
2nd VGA
Yes
DVI
Yes
2nd DVI
No
TV-out
Yes
HDTV (YPrPb component output)
Yes
Video-in
No
TV Tuner
No
FM Tuner
No

Massive Performance Gives Rise to High-Definition (HD) Gaming
The HIS X800 series produces frame rates that surpass all previous graphic processors. Based on a radically new architecture, ATI has combined the latest semiconductor manufacturing process with ultra-fast and efficient GDDR3 memory to produce extreme data rates and unbelievable acceleration in a quiet and cool single-slot solution. The result is an incredibly smooth and responsive high-definition gaming experience.

World's most advanced 3D Architecture
The HIS X800 series features SMARTSHADER™ HD, the most advanced pixel shader engine ever offered. With up to 16 parallel pixel pipelines, 6 programmable vertex shader pipelines and an overall capability of up to 200 GigaFLOPS, the HIS X800 series delivers the most advanced high-definition 3D animation for the ultimate intense and interactive game play. The HIS X800 series also offers unparalleled DirectX® 9.0 and OpenGL® shader support to ensure current and upcoming games look and play brilliantly, especially in high-definition.

Cutting Edge Video Technology
With VIDEOSHADER™ HD, the HIS X800 series takes advantage of its advanced shader processing engine for user programmable video effects, video quality enhancement, and encoding and decoding of many video standards, including MPEG1/2/4, Real Media, DivX and WMV9. The HIS X800 series also supports the latest high-definition and widedisplay formats, giving users bigger and more vivid movie, gaming and Internet experiences.

IceQ cooling technology
The IceQ cooling system draws cool air from inside the case and exhausts warm air outwards. This prevents the fan from recycling warm air to cool the VPU, which increases cooling performance and lower the air temperature inside the case significantly.

HIS iTURBO Utility

HIS iTURBO easy to use interface provides a flexibility way for users to adjust the VPU clock, memory clock and fan speed, with the features of VPU temperature and fan speed monitoring.

CrossFire�?Multi-GPU Ready
HIS CrossFire�?is the ultimate multi-GPU consumer graphics solution, igniting an entirely new gaming experience with the power of multiple GPUs within a single PC. Starting with a HIS CrossFire Ready graphic card and motherboard, using a single external cable unites another HIS CrossFire�?Edition co-processor graphic card. HIS CrossFire�?accelerates all your games, all the time, and delivers the highest image quality modes and resolutions with no special software or patches needed for compatibility.



How to identify "Turbo" edition?
HIS Turbo edition guarantees a dramatic range of overclockable speed on your card. All IceQ II series come with both Turbo and non Turbo (standard) editions. Check for the box containing this label. It identifies this is a "Turbo" edition card and marked with the guaranteed overclocking speed in core and memory.

Card Dimension:
- Width: 233mm, Height: 129mm, Depth: 57mm (approx.)
