HIS HD 4350 Silence 512MB (64bit) DDR2 PCIe
  • H435H512P.jpg
  • HD4350_Silence_1_1600
  • HD4350_Silence_2_1600
  • HD4350_Heatpipe_2_1600
  • 4350_512MB_box.jpg
  • 200810281421423662
  • HIS_bundling_2_800
Product Code H435H512P
EAN Code 4895139001259
Cooler Silence
GPU 4350
Core Clock 600 MHz
Memory Clock 800 MHz
Memory Size 512 MB
Memory Type DDR2
Memory Interface 64 bit
Interface PCI Express x16 (PCI Express 2.0)
Card Dimension 18 X 12 X 2.8 cm
Box Dimension 23.2 x 16.2 x 6 cm
Box Weight 0.21 kg
Availability Available

  • Windows 7 Compatibility
  • ATI Premium Graphics™
  • ATI Stream Technology™
  • ATI CrossfireX™
  • DirectX 10.1
  • PCI Express 2.0
  • OpenGL 3.1
  • 1080p
  • HDMI
  • HDTV
  • Dual Monitor
  • Shader Model 4.1
  • Unified Video Decoder 2
  • 7.1 Channel Audio
  • DVI
  • VGA
  • TV-Out
  • Retail Pack

ATI RadeonTM HD 4300 Series Key Features
· DirectX® 10.1
· 80 stream processing units
· 64-bit memory interface
· 12x custom filter anti-aliasing (CFAA) and high performance anisotropic filtering
· Dual mode ATI CrossFireXTM multi-GPU support for highly scalable performance
· PCI Express® 2.0 support
· ATI AvivoTM HD video and display technology*
· Unified Video Decoder 2 (UVD 2) for Blu-rayTMand HD Video
· Built-in HDMI with 7.1 surround sound support
. The HIS DVI to HDMI Adapter for ATI 4000/ 3000 series (Product Code: HHDMI4071) is required to fully utilize the audio through HDMI features
· Dynamic power management with ATI PowerPlayTM technologyCABLE/ADAPTOR BUNDLED

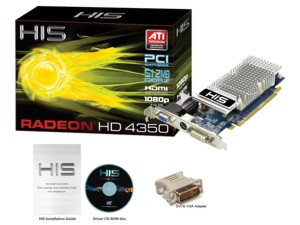

CABLE/ADAPTOR BUNDLED

* DVI to VGA adapter



Model Name HIS HD 4350 Silence 512MB (64bit) DDR2 PCIe
Chipset Radeon HD 4300 PCIe Series
ASIC RadeonTM HD 4300 GPU
Pixel Pipelines 80 stream processing units* (Unified)
Vertex Engines 80 stream processing units* (Unified)
Manu. Process (Micron) 55nm
Transistor 242 million
Memory Size (MB) 512
Memory Type DDR2
RAMDAC (MHz) 400
Engine CLK (MHz) 600
Memory CLK (MHz) 800
Memory Interface (bit) 64
Power Supply Requirement 300 Watt or greater power supply (350 Watt for ATI CrossFireX™ technology in dual mode) is recommended
Max. Resolution 1920x1200 (single-link DVI) or 2560x1600 (dual-link DVI)
Bus Interface PCI Express x16 (PCI Express 2.0)
VGA Yes
2nd VGA No
DVI Yes
2nd DVI No
TV-out Yes
HDTV (YPrPb component output) No
Video-in No
TV Tuner No
FM Tuner No
ATI Radeon™ HD 4350 System Requirements
  • PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard
  • 300 Watt or greater power supply (350 Watt for ATI CrossFireX™ technology in dual mode) is recommended
  • Certified power supplies are recommended. Refer to for a list of Certified products
  • 1GB of system memory recommended
  • Installation software requires CD-ROM drive
  • DVD playback requires DVD drive
  • Blu-ray™ playback requires Blu-ray drive and full 1080p display requires a 1080p-capable monitor
  • For Microsoft DirectX® 10.1 support, Windows Vista® Service Pack 1 is required
  • To enable dual mode ATI CrossFireX™ technology, a second ATI Radeon™ HD 4350 Series graphics card, and an ATI CrossFireX Ready motherboard are required

For more information, please visit the following link:

http://ati.amd.com/products/Radeonhd4300/specs.html

Go Beyond HD Video
Accelerate your PC with the ATI RadeonTM HD 4350 GPU and get the dedicated graphics memory you need to handle graphics-intensive activities like watching HD movies or editing videos while freeing up your CPU for other tasks. Watch the latest Blu-ray and HD movies play with incredible fidelity1 - go beyond 1080p playback. Make digital images come to life with over 1 billion colors3 and stay true to the actual images when you view and edit photos. Support for the latest audiovisual interconnects ensures you can take advantage of the latest display technology.

Upscale Beyond 1080p
Watch the hottest Blu-ray movies or other HD content at full 1080 display resolution and beyond.

Unified Video Decoder 2 (UVD 2)
UVD 2 frees up your CPU for other tasks so you get The Ultimate Visual ExperienceTM for the most processing-intensive content.

HDMI
Enjoy the latest audio technologies using HDMI with 7.1 digital surround sound support. Also, xvYCC support allows the user to enjoy a wider range of colors when connected to a capable HDTV.

* The HIS DVI to HDMI Adapter for ATI 4000/ 3000 series (Product Code: HHDMI4071) is required to fully utilize the audio through HDMI features

Integrated DisplayPort technology with audio
DisplayPort is an innovative digital solution that supports the latest graphics and LCD technologies.

80 Stream Processing Units
Enough power to tackle demanding games and applications.

Enhanced Anti-Aliasing (AA) & Anisotropic Filtering (AF)
High performance anisotropic filtering and anti-aliasing (4X AA) smooth jagged edges and create true- to-life graphics, for everything from grass to facial features.

Consumes less than 20 watts under full load
The ATI RadeonTM HD 4350 graphics card consumes less than 20 watts under full load, making it the ideal choice for implementation across a large diverse install base of desktop PCs.

Dynamic Power Management
ATI Radeon HD 4350 graphics card features ATI PowerPlayTM technology, delivering high performance when needed and conserving power when the demand on the graphics processor is low.

Energy Efficient Manufacturing Process
Second generation 55nm chip uses an energy efficient manufacturing process.

Stability & Reliability
AMD's award-winning ATI CatalystTM graphics software and drivers deliver unprecedented graphics stability and reliability.

Industry Leading Technical Support
Owners of ATI RadeonTM Certified graphics products have free access to a comprehensive online knowledge base and technical

Microsoft® DirectX® 10.1 support
ATI RadeonTM HD 4300 series GPUs offer full support for the new DirectX® 10 and DirectX® 10.1 API (Application Program Interface) from Microsoft; ready to meet the demanding needs of new, next generation games. DirectX 10 is the first totally new DirectX in the last 4 years and brings important graphics innovations that can be used by game developers for the next generation of games. DirectX 10 introduces crisp, never-beforeseen detail-rich images, visual effects and game dynamics capable of accurately simulating the real world. No matter which ATI RadeonTM HD 4300 Series GPU you choose, you can be assured that games will look as good as the developer intended!






ATI CrossFireXTM Technology
- "Take gaming to a new level with plug-n-play ease"

ATI CrossFireXTM multi-GPU technology takes your gaming experience to the next level with superb scalability, performance and compatibility. The technology combines the awe-inspiring capabilities of multiple ATI RadeonTM graphics cards and an ATI CrossFireX ready motherboard to meet the hard-core demands of your alternate reality. New ATI RadeonTM HD graphics cards are designed with an internal ATI CrossFireTM Bridge Interconnect system to simplify installation.

Experience stunning visual realism in today's demanding games with uncompromising image quality, especially on HD displays. ATI CrossFireX: Multiply and Conquer!


Microsoft® Windows Vista®
- "The Ultimate Visual Experience"

ATI RadeonTM HD 4300 series graphics cards provide support for the Microsoft® Windows Vista® operating system and take advantage of the Windows AeroTM graphical interface. You will be
amazed by the dazzling 3D visual effects and have peace of mind that the ATI CatalystTM software and drivers are designed and thoroughly tested to ensure full compatibility and stability to help
keep you up and running. All these new technologies and features make the ATI Radeon HD 4300 series of GPUs the ideal solution for ultimate HD gaming and HD video entertainment with the
Windows Vista OS
