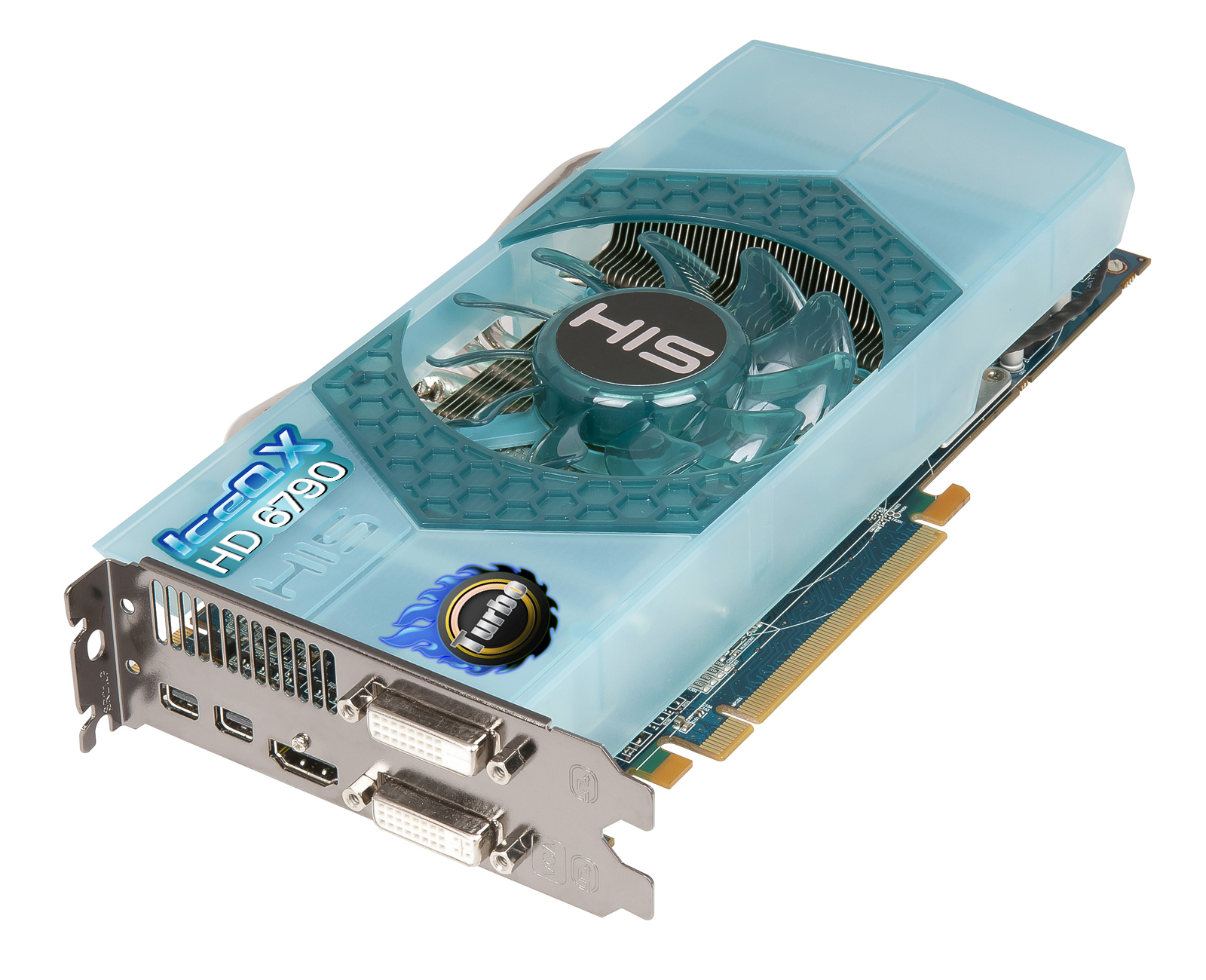

HIS 6790 IceQ X Turbo 1GB GDDR5 PCI-E HDMI/2xDVI/2xMini DP
  • H679QNT1G2M_all_1600.jpg
  • H679QNT1G2M_003_1_1600.jpg
  • H679QNT1G2M_002_1_1600.jpg
  • H679QNT1G2M_001_1_1600.jpg
  • H679QNT1G2M_004_1_1600.jpg
  • 3636_008_1_1600.jpg
  • 3636_006_1_1600.jpg
  • 3636_007_1_1600.jpg
  • H679QNT1G2M_3D_BOX_1600.jpg
Product Code H679QNT1G2M
EAN Code 4895139005523
Cooler IceQ X
GPU 6790
Core Clock 900 MHz
Memory Clock 4400 MHz
Memory Size 1024 MB
Memory Type GDDR5
Memory Interface 256 bit
Interface PCI Express x16 (PCI Express 2.1)
Card Dimension 14.2 x 4.2 x 26 cm
Box Dimension 32.31 x 9.5 x 18.48 cm
Box Weight 1.16 kg
Availability

  • Windows 7 Compatibility
  • AMD Radeon Graphics
  • AMD Vision Technology
  • AMD HD3D Technology
  • AMD Eyefinity Technology
  • DirectX 11
  • IceQ X
  • PCI Express 2.1
  • OpenGL 4.1
  • 1080p
  • HDMI
  • HDTV
  • Dual Monitor
  • Shader Model 5
  • Unified Video Decoder 3
  • Gaming
  • Mini DisplayPort
  • Native HDMI
  • Dual DVI
  • Retail Pack
About DiRT® 3™

Coming 2011, DiRT 3 will boast more cars, more locations, more routes and more events than any other game in the series, including over 50 rally cars representing the very best from five decades of the sport. With more than double the track content of 2009’s hit, DiRT 3 will see players start at the top as a professional driver, with a top-flight career in competitive off-road racing complimented by the opportunity to express themselves in Gymkhana-style showpiece driving events.

As players race to elevate their global standing, DiRT 3 delivers mud, sweat and gears world over: from the intense weather-beaten rally stages of Europe, Africa and the US, to executing performance driving showcases and career challenges where car control is pushed to spectacular limits.

Dirt 3 Official Gameplay Trailer (HD)

AMD Eyefinity technology: Gaming and productivity on up to six simultaneous displays
  • Expand your favorite games across multiple displays with AMD Eyefinity technology for an incredibly expansive field of view.
  • Get the freedom and flexibility to upgrade. This modular solution enables you to add more displays when you need them.
  • Get more done. Put your productivity into overdrive and let multiple displays put all the information you need right before your eyes.
  • Don’t choose between play and work. Let multiple displays help you enjoy games, movies and the web at the same time.


* ATI Eyefinity technology requires one panel with a DisplayPort connector to enable the third display. DisplayPort to DVI dongle is required for panel with DVI connector

AMD’s second-gen DirectX® 11-ready graphics: Stunningly realistic gaming
  • Be ready for the hottest DirectX® 11-capable games with AMD’s second generation graphics with full DirectX® 11 support.
  • With lightning-fast frame rates and ultrarealistic effects, the AMD Radeon™ HD 6790 enables an amazing HD gaming experience.
  • With advanced tessellation performance, AMD Radeon™ HD 6790 graphics are designed to enable the realistic detail that you deserve.
AMD EyeSpeed technology: Fast applications and incredible video
  • Get more from your system than great gaming. AMD EyeSpeed visual acceleration technology taps into the power of the AMD Radeon™ HD 6790 for fast applications and pristine video.
  • Accelerate the most demanding applications with AMD EyeSpeed technology. Do more,faster.
  • Maximize your online and Blu-ray video experiences with a new level of smooth visual quality with AMD EyeSpeed visual acceleration technology.
Put out Stunning Visual and Unrivaled Audio Experience with HD3D Technology
  • Stereo 3D display/glasses support
  • Stereo 3D gaming
  • Blu-ray™ 3D support
  • 3rd Party stereo 3D middleware software support
  • Launching with AMD Radeon™ 6790 Series GPUs

HD 6790 Features and Benefits

Features

Benefits

Microsoft® DirectX® 11 Support

Get intense gaming performance and unrivalled image quality with stunning 3D visual effects, realistic lighting and lifelike imagery, driven by AMD’s second-generation DirectX® 11-capable graphics.

AMD Eyefinity Technology

Enjoy the ultimate immersive gaming experience with innovative “surround sight” multi-display capabilities

AMD HD3D Technology

Experience high quality, full stereoscopic 3D viewing of:
• Blu-ray 3D movies
• Games
• Video/Movies
• Photos

AMD EyeSpeed technology

Accelerate the most demanding applications for improved performance

Advanced GDDR5 Memory Technology

Delivers more speed and higher bandwidth

AMD CrossFireX™ Technology

Increase your gaming performance with AMD CrossFireX™ Technology

2nd Generation TeraScale Engine

Provides increased processing power for the latest games and accelerated applications

40 nm Process Technology

Provides enhanced processor performance while using less power and better transistor efficiency than previous generation technology

Accelerated Video Transcoding

Helps improve video transcoding performance.

Display Flexibility

More flexibility with maximum connectivity for the latest display technologies

HDMI 1.4a

Helps ensure you get the full Blu-ray and PVR experience from your PC

Dolby® TrueHD and DTSHD Master Audio Support

Get a fully immersive high-definition audio experience with the latest Blu-ray movies

AMD PowerPlay™ Technology

Power draw scales according to activity so when GPU activity is low, the power draw is minimal.
Enhanced Unified Video Decoder (UVD) 3 Watch the hottest Blu-ray movies, online video and other HD content beyond 1080p with low power and low noise with GPU acceleration and enhanced Unified Video Decoder (UVD) 3 features.

Enhanced Internet Browser Applications

A fast and smooth browsing experience with enhanced image rendering, response, and media playback

The Power of HIS

The Excalibur, once owned by the invincible King Arthur, denotes the leader's mighty kingship with its mystical power and fascinating beauty and brings him triumph battle after battle.

Now HIS raises this sword again for gamers.

The Legend reborn... Prepare to conquer the gaming world!

HIS PRODUCTS ADVANTAGE
  • HIS delivers Faster, Cooler, Quieter plus the best quality product!
  • Professional customer service and technical support
What's in the box
  • HIS Graphics Card
  • CrossFireXTM Bridge
  • 2x Power Cable 2x 4pin in, 6 pin out
  • DVI-VGA Adapter
  • Install CD with Multilingual User Guide
  • Quick Installation Guide
  • HIS Power Up Label
  • DiRT® 3™ Redemption Coupon
    (Starting at mid-June and available while stock last)

Model Name HIS 6790 IceQ X Turbo 1GB GDDR5 PCI-E HDMI/2xDVI/2xMini DP
Chipset Radeon HD 6790 PCIe Series
ASIC RadeonTM HD 6790 GPU
Manu. Process (Micron) 40nm
Memory Size (MB) 1024
Memory Type GDDR5
Engine CLK (MHz) 900Mhz
Memory CLK (Gbps) 4.4Gbps
Memory Interface (bit) 256
Power Supply Requirement 500 Watt or greater power
Max. Resolution 2560*1600
Bus Interface PCI Express x16
Mini Display Port Yes
HDMI Yes
DVI Upper Single-link DVI-D + Bottom Dual-link DVI-I
VGA No

HD 6790 System Requirement

  • PCI Express® based PC is required with one X16 lane graphics slot with 2 slots space available on the motherboard
  • 500 Watt or greater power supply with two 75W 6-pin PCI Express® power connectors recommended (600 Watt and four 6-pin connectors for AMD CrossFireX™ technology in dual mode)
  • Certified power supplies are recommended. Refer to http://ati.amd.com/certifiedPSU for a list of Certified products
  • Minimum 1GB of system memory
  • Installation software requires CD-ROM or DVD-ROM drive, a keyboard, a mouse, and a display
  • DVD playback requires DVD drive and a DVD
  • Blu-ray™ playback requires Blu-ray drive and a Blu-ray disc
  • For an AMD CrossFireX™ system, a second AMD Radeon™ HD 6790 Graphics card, an AMD CrossFireX™ Ready motherboard and one AMD CrossFireX™ Bridge Interconnect cable is required
