HIS HD 4670 IceQ 512MB (128bit) DDR3 PCIe
  • H467QS512P.jpg
  • 4670_iceq_4_1600.jpg
  • 4670_iceq_3_1600.jpg
  • 4670_iceq_2_1600.jpg
  • 4670_iceq_1_1600.jpg
  • 4670_iceq_v1_1600.jpg
  • HD4670_IceQ_3DBox_700
Product Code H467QS512P
EAN Code 4895139001143
Cooler IceQ
GPU 4670
Core Clock 750 MHz
Memory Clock 2000 MHz
Memory Size 512 MB
Memory Type DDR3
Memory Interface 128 bit
Interface PCI Express x16 (PCI Express 2.0)
Card Dimension 12.6 X 20.3 X 4 cm
Box Dimension 32.4 x 20.8 x 6.5 cm
Box Weight 0.95 kg
Availability Available

  • Windows 7 Compatibility
  • ATI Premium Graphics™
  • ATI Stream Technology™
  • ATI CrossfireX™
  • DirectX 10.1
  • PCI Express 2.0
  • OpenGL 3.1
  • 1080p
  • HDMI
  • HDTV
  • Dual Monitor
  • Shader Model 4.1
  • Unified Video Decoder 2
  • 7.1 Channel Audio
  • Gaming
  • Dual DVI
  • TV-Out
  • Retail Pack

"HIS HD 4670 graphics beats GeForce 9600 GSO in high settings!" - Comparsion based on AMD internal testing




Product Advantage



HIS IceQ technology is endorsed as the most efficient cooling technology among the current mainstream graphic cards' series. HIS IceQ can actively draw the air inside your PC case to cool down the card, and blows amounts of hot air out of your case, dramatically decreasing the GPU temperature together with your PC components. HIS IceQ is also UV sensitive, enhancing the gamers' UV light case.


Heat transfers rapidly out of GPU and reduces temperature faster.

Cool down the droom to overclock and run chip faster; provides more headroom to overclock and run faster.

Operates with lower noise level than original cooler.
  1. Efficient transfer of heat outside of computer case
    Cool air is drawn from both sides of the fan and hot air is forced out of the computer case. This ensures effective cooling when there is another card in front blocking the fan inlet, such as in CrossFire setup
  2. Dual-slot cooling design
    Ensure you can conveniently connect the CrossFire cable to run a CrossFire setup.
  3. Silent and durable fan
    Significantly reduce noise level and extend service life
  4. Isolated heatsinks
    memory and GPU heatsinks are completely separated, preventing any heat transfer from GPU to memory. Memory heatsink is actively cooled by air stream from main cooler.


Faster - Heat transfers rapidly out of GPU and reduces temperature faster

In order to improve the power capacity, we have changed from simple extrusion heatsink to stacked fins with bigger surface area to improve the heat transfer efficiency significantly. Thicker spreader and heatpipes are also used to allow a more even heat distribution among the fins. Spreader is the metal base of the heatsink.

" The cooling effect is much better than the reference cooler, allow you to maximize your overclocking potential.  " - PC Market






Cooler - Efficient transfer of heat outside of computer case:

Cool air is drawn from both sides of the fan and hot air is forced out of the computer case. This ensures effective cooling when there is another card in front blocking the fan inlet, such as in CrossFire setup. Memory and GPU heatsinks are completely separated, preventing any heat transfer from GPU to memory. Memory heatsink is actively cooled by air stream from main cooler.

Cooling Performance - IceQ vs 3rd Party Cooler


Quieter - Significantly reduce noise level and extend service life












HIS IceQ is also UV sensitive, enhancing the gamers' UV light case




  • Powered by Radeon® HD 4670 GPU
  • Innovative IceQ Cooling technology
  • 320 stream processing units
  • DirectX® 10.1
  • 24x custom filter anti-aliasing (CFAA) and high performance anisotropic filtering
  • Dual mode ATI CrossFireXTM multi-GPU support for highly scalable performance
  • PCI Express® 2.0 support
CHIPSET FEATURES
  • 320 stream processing units
  • 128-bit memory interface
  • 24x custom filter anti-aliasing (CFAA) and high performance anisotropic filtering
  • PCI Express® 2.0 support
  • Dual mode ATI CrossFireXTM multi-GPU support for highly scalable performance
  • · PCI Express® 2.0 support
  • High-speed 128-bit HDR (High Dynamic Range) rendering
  • ATI AvivoTM HD video and display technology
  • Built-in HDMI with 7.1 surround sound support
    • The HIS DVI to HDMI Adapter for ATI 4000/ 3000 series (Product Code: HHDMI4071) is required to fully utilize the audio through HDMI features
  • Support for the ATI RadeonTM DVI to HDMI adapter
  • Unified Video Decoder (UVD) for Blu-rayTM and HD DVD
  • Dynamic geometry acceleration
  • Game physics processing capability
HIS PRODUCTS ADVANTAGE
  • HIS delivers Faster, Cooler, Quieter plus the best quality product!
  • Professional customer service and technical support
ACCESSORIES
SOFTWARE BUNDLED

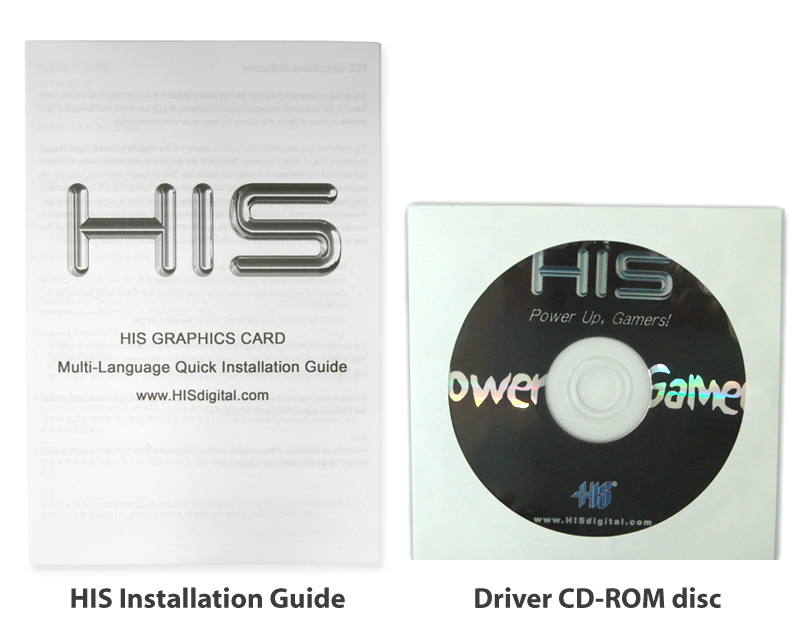

  • Driver Disc

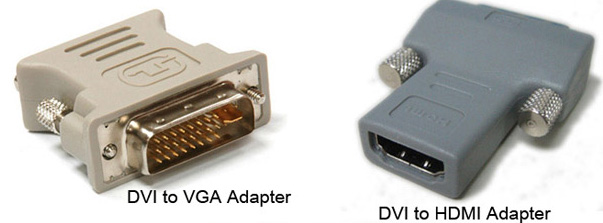

CABLE/ADAPTOR BUNDLED
  • DVI to HDMI adapter
  • DVI to VGA adapter



Model Name HIS HD 4670 IceQ (Full HD 1080p) HDMI 512MB (128bit) DDR3 Dual DL-DVI & TV (HDCP) PCIe (RoHS)
Chipset Radeon HD 4600 PCIe Series
ASIC RadeonTM HD 4670 GPU
Pixel Pipelines 320 stream processing units* (Unified)
Vertex Engines 320 stream processing units* (Unified)
Manu. Process (Micron) 55nm
Transistor 514 million
Memory Size (MB) 512
Memory Type DDR3
RAMDAC (MHz) 400
Engine CLK (MHz) 750
Memory CLK (MHz) 2000
Memory Interface (bit) 128
Power Supply Requirement 400 Watt or greater power supply (550 Watt for ATI CrossFireX™ technology in dual mode) is recommended
Max. Resolution 1920x1200 (single-link DVI) or 2560x1600 (dual-link DVI)
Bus Interface PCI Express x16 (PCI Express 2.0)
VGA No
2nd VGA Yes
DVI Yes
2nd DVI Yes
TV-out Yes
HDTV (YPrPb component output) No
Video-in No
TV Tuner No
FM Tuner No

ATI Radeon™ HD 4600 System Requirements
  • PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard
  • 400 Watt or greater power supply (550 Watt for ATI CrossFireX™ technology in dual mode) is recommended
  • Certified power supplies are recommended. Refer to http://ati.amd.com/certifiedPSU for a list of Certified products
  • 1GB of system memory recommended
  • Installation software requires CD-ROM drive
  • DVD playback requires DVD drive
  • Blu-ray™ playback requires Blu-ray drive and full 1080p display requires a 1080p-capable monitor
  • To enable dual mode ATI CrossFireX™ technology, a second ATI Radeon™ HD 4600 Series graphics card, an ATI CrossFireX Ready motherboard and one ATI CrossFireX Bridge Interconnect cable is required.

For more information, please visit the following link:
http://ati.amd.com/products/radeonhd4600/specs.html

HIS IceQ Cooling Technology

HIS IceQ innovative design doubles the strength to its predecessor. It ensures lower operating environment for GPU and memory, extends headroom for overclocking and provides longer service life. HIS IceQ can cool down the core temperature dramatically; lower than original cooler. Heat transfers rapidly out of GPU and reduces temperature faster. Also it is sensitive to ultra violate light with special UV effect.

Redefine HD Gaming

The ATI Radeon HD 4600 Series graphics cards boast up to 3 times the performance of the previous generation1 of GPUs and deliver a cinematic gaming experience. These graphics cards possess the same engine architecture as the award-winning ATI RadeonTM HD 4800 Series and can propel you deep into your game play with fast frame rates and high resolutions. Enhanced anti-aliasing (4X AA) and anisotropic filtering creates striking graphics with unparalleled realism so you can jack up the settings on the most demanding next-generation games. Play today while preparing for tomorrow with Microsoft DirectX® 10.1 and scalable ATI CrossFireXTM technology in dual mode.

Break-through Efficiency

Save time and energy with the ATI RadeonTM HD 4600 Series graphics cards which provide optimal performance, break-through efficiency and stability. These graphics cards are a great option for business users who engage in video conferencing or use creative applications that require fast frame rates and exceptional visual quality. With platform-independent intelligent power management, the ATI RadeonTM HD 4600 Series graphics cards deliver the power needed to blaze through even the most intense applications while intuitively conserving energy at idle or when demand is low. Expand your visual workspace with multi- monitor support for advanced multi- tasking to help you get more done in less time.

Go Beyond HD Video

Add an ATI Radeon HD 4600 Series graphics card to your PC and watch the latest Blu-ray and HD movies play with incredible fidelity1 - upscale to nearly twice the display resolution of HD content.2 Take full advantage of Blu-ray functionality with dual-stream, picture in picture (PIP) capabilities. Sophisticated new features within ATI AvivoTMHD technology give you the freedom and flexibility to edit videos and convert them to H.2.64 and MPEG-2 formats. Support for the latest audio visual interconnects ensures you can take advantage of the latest display technology.

HDMI Video and Audio

A system with an ATI RadeonTM HD 4600 Series graphics card can help enhance the HD entertainment experience by providing a seamless connection to an HDTV or home theater system. With built-in 7.1 surround sound audio (AC3 / DTS ), the new GPUs and graphics cards support single cable connection directly to a compatible HDTV, projector or receiver. This single cable carries both the HD video and 8 channel audio for a clean, high definition connection. Some graphics cards will be equipped with an HDMI connector, while others will output the HDMI signal using a special ATI Radeon DVI-I to HDMI adapter. These options give consumers more options and flexibility when connecting their PCs to monitors or home theaters for maximum enjoyment of HD content. The new GPU also supports xvYCC color which can display a wider range of color when connected to capable HDTVs.

* The HIS DVI to HDMI Adapter for ATI 4000/ 3000 series (Product Code: HHDMI4071) is required to fully utilize the audio through HDMI features

Microsoft® DirectX® 10.1 support

ATI RadeonTM HD 4600 series GPUs offer full support for the new DirectX® 10 and DirectX® 10.1 API (Application Program Interface) from Microsoft; ready to meet the demanding needs of new, next generation games. DirectX 10 is the first totally new DirectX in the last 4 years and brings important graphics innovations that can be used by game developers for the next generation of games. DirectX 10 introduces crisp, never-beforeseen detail-rich images, visual effects and game dynamics capable of accurately simulating the real world. No matter which ATI RadeonTM HD 4600 Series GPU you choose, you can be assured that games will look as good as the developer intended!

ATI CrossFireXTM Technology

New ATI CrossFireXTM multi-GPU technology takes your gaming experience to the next level with more scalability, performance and compatibility. The technology combines the awe-inspiring capabilities of multiple ATI RadeonTM graphics cards and an ATI CrossFireX ready motherboard to meet the hard-core demands of your alternate reality. New ATI RadeonTM HD graphics cards are designed with an internal ATI CrossFireXTM Bridge Interconnect system to simplify installation. Experience stunning visual realism in today's demanding 3D games with uncompromising image quality, especially on HD displays.

Microsoft® Windows Vista®

ATI RadeonTM HD 4600 series graphics cards provide support for the Microsoft® Windows Vista® operating system and take advantage of the Windows AeroTM graphical interface. You will be amazed by the dazzling 3D visual effects and have peace of mind that the ATI CatalystTM software and drivers are designed and thoroughly tested to ensure full compatibility and stability to help keep you up and running. All these new technologies and features make the ATI Radeon HD 4600 series of GPUs the ideal solution for ultimate HD gaming and HD video entertainment with the Windows Vista OS.
