HIS 7750 iSilence 5 1GB GDDR5 PCI-E DP/DVI/HDMI
  • 7750_iSilence_all_1600.jpg
  • 0162_01_1600.jpg
  • 0162_02_1600.jpg
  • 0162_03_1600.jpg
  • 0162_04_1600.jpg
  • 0162_05_1600.jpg
  • 0162_06_1600.jpg
  • 7750_iSilence5_3d_box_1600.jpg
Product Code H775P1GD
EAN Code 4895139007299
Cooler Heatsink
GPU 7750
Core Clock 800 MHz
Memory Clock 4500 MHz
Memory Size 1024 MB
Memory Type GDDR5
Memory Interface 128 bit
Interface PCI Express x16 (PCI Express 3.0)
Card Dimension 20.6 x 12.1 x 3.6 cm
Box Dimension 21.5 x 5.5 x 34.35 cm
Availability

  • Windows 7 Compatibility
  • AMD Radeon Graphics
  • AMD Vision Technology
  • AMD HD3D Technology
  • AMD Eyefinity Technology
  • DirectX 11
  • iSilence 5
  • PCI Express 3.0
  • OpenGL 4.2
  • OpenCL 1.2
  • 1080p
  • HDMI
  • HDTV
  • Dual Monitor
  • Shader Model 5
  • Unified Video Decoder
  • 7.1 Channel Audio
  • Gaming
  • Display Port
  • Native HDMI
  • DVI
  • Retail Pack

With core and memory clocks at 800MHz and 4500MHz, the card ensures the highest graphics enjoyment for movies and various applications.

Equipped with HIS iSilence cooler, , the card offers a 0 dB environment but still have the best on cooling technology.

The card has low power consumption, requiring only 400W power supply and no external power!

The card is made of HIS high quality component, having higher stability and longer life span.

iSilence – No Noise, Enjoy!


The card is armed with the HIS innovative passive cooler for gaming and multi-media entertainment. The cooler is made with high quality copper, dissipating the heat of GPU much faster than standard material. The 190 x 97 x 32mm extra large cooling area can efficiently draw massive amount of heat out. Combined with the 4X 6mm thick heatpipes that transfer heat rapidly to cooling area, the card offers a 0 dB environment but still have the best on cooling technology.

High Quality Components


HIS uses only the finest materials and the most advanced techniques to build our cards, making them one of the most stable and durable product in the industry. The card is engineered with the highest standard of safety, preventing them any potential damages. Full Solid State Capacitors enhances the stability of the card and makes the card last longer.

New Design, New Experiences


PCI-e 3.0 Support
Armed with the latest PCI-e 3.0 bus design maximizes performance by delivering double bandwidth per lane of PCI-e 2.x. Paired the card with the latest platforms and get the ultimate performance!

More Graphics, Less Power


Low Power Consumption
You do not have to worry about having the proper power connection from you power supply. No external power is needed and power is supplied through the card slot. The card requires only 400W power supply. Just plug the card in and enjoy the superb graphics experiences!

Optimized Power & Performance
The new architecture of the card gets more usable processing power for your money, enabling better frame rates in the latest games at high resolutions. In addition, with AMD PowerPlay™ & AMD PowerTune technologies, you can optimize the balance between performance and power consumption of your system by adjusting the engine clock during runtime of the card. Manage the power and keep your wallet loaded!

See More, Win More!


The card is capable to turn your computer into a super gaming machine. Enjoy the latest 3D games with stunning graphics and effects that your enemies cannot match! Get an immersive experience with AMD Eyefinity “2.0”!

Expand your game across up to 3 displays while your opponents have one monitor. Along with all-new support for stereo 3D, universal bezel compensation and brand new display configurations, take the unfair advantage over your opponent and win more with the surround sight"

Game Better & Faster


Game Better & Faster
With full Microsoft DirectX® 11.1 support, the card is ready for next generation DirectX games. Equipped with AMD HD3D technology, you can enjoy a stereo 3D experience in the latest 3D games. The card also offers up to 2x faster tessellation and faster DirectCompute over earlier cards. Gamers will be pleased to enjoy the life-like graphics!

List of approved monitors for AMD HD3D Technology:
• Samsung SA700
• Samsung SA750
• Samsung TA950
• Samsung SA950
• Samsung TA 750
• LG D2342P
• LG D237IPS

Sounds Better
Output protected high bit rate 7.1 channel surround sound over HDMI with no additional cables required, heightening the sense of reality!

See Better, Enjoy Better!

The card supports 30” LCD monitor and any large size TV up to 80" feature with 16:9 ratio in amazing 4096 by 2160 resolution. Up-scaling your computer into a multimedia center with the biggest display!

Enjoy HD Beauty
With Full HD 1080p support, the card delivers high quality 1920X1080 graphics, enabling seamless full-screen video playback. See HD, hear HD and feel HD - Enjoy the beautiful graphics now with the card!

Enjoy Copy Protected Movies
The card is HDCP compliant, enabling users to play copy-protected content, such as commercial DVD movies.

Enjoy True to Life Graphics
Quad HD videos have resolution four times that of current HD videos, meaning images too clear that may deceive your eyes! With the card, you are set for getting the movie theater experience to your home. You may be able to watch a video shooting the Eiffel tower and zoom it in to see your friend’s face clearly from the top! Get your eyes impressed and enjoy mind-blowing graphics with extreme clarity, depth and texture!

View More, Work Better

Are you wishing to have multi-display Video Conferencing? Or having one dedicated screen just for Facebook and a second for emails? These are not dream anymore. The card features 2 Mini-display Ports for enhanced workspace flexibility. You can easily connect to two displays, including the 27” Apple LED Cinema Displays with the two Mini DisplayPorts. The dual-link DVI port allows you connect to a 30” DVI display up to 2560x1600. Resolution can even reach 4096x2160 with HDMI that are good for TV up to 80"!

Hear Better in Video Conference
Most GPUs today support only one audio stream at a time. The card, however, has Discrete Digital Multi-Point Audio that can simultaneously output multiple, independent audio streams. Audio seamlessly follows the video, providing affordable multi-display, multi-audio conferencing for consumers!

The card is an ideal solution for all those who rely on having several applications visible simultaneously for extra productivity. Multi-tasking and multi-display video conferencing just got a lot simpler! Make your computer a multi-display workstation!



HIS Products Advantage
  • HIS delivers Faster, Cooler, Quieter plus the best quality product!
  • Professional customer service and technical support

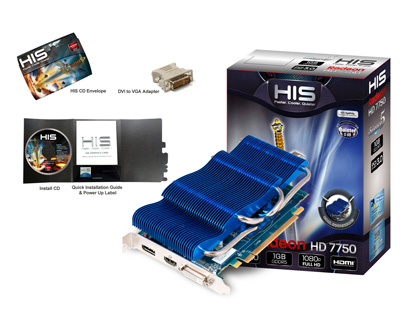

What's in the box
  • HIS Graphics Card
  • DVI-VGA Adapter
  • Install CD with Multilingual User Guide
  • Quick Installation Guide
  • HIS Power Up Label





Model Name HIS 7750 iSilence 5 1GB GDDR5 PCI-E DP/DVI/HDMI
Chipset Radeon HD 7750 PCIe Series
ASIC RadeonTM HD 7750 GPU
Manu. Process (Micron) 28nm
Memory Size (MB) 1024
Memory Type GDDR5
Engine CLK (MHz) 800MHz
Memory CLK (Gbps) 4.5Gbps
Memory Interface (bit) 128bit
Power Supply Requirement 400 Watt or greater power
Max. Resolution 4096x2160 per display (DisplayPort 1.2)
2560x1600 per display (Dual-link DVI)
2048x1536 per display (VGA)
Bus Interface PCI Express 3.0 x16
Display Port Yes
HDMI Yes
DVI Dual-link DVI-I
VGA No





HD 7750 System Requirement

  • PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard
  • 400W (or greater) power supply recommended.
  • 500W power supply (or greater) recommended for AMD CrossFire™ technology in dual mode
  • Certified power supplies are recommended. Refer to http://support.amd.com/us/certified/power-supplies/Pages/listing.aspx for a list of Certified products
  • Minimum 1GB of system memory
  • Installation software requires CD-ROM drive
  • DVD playback requires DVD drive
  • Blu-ray™ playback requires Blu-ray drive









January 8th, 2013 at 11:57 pm By HyperS.

High tech and energy saving, worth my money.

Post your comment

Comments will be reviewed by the editors before being published, mainly to ensure that spam and irrelevant material are not published . Please feel free to comment!

We strongly encourage you to use your real name. E-mail addresses are required in case we need to follow up with you directly. We won't publish your e-mail address unless you request.

Name (*)
EMail (*)
Comment (*)

HIS has won over 1000 awards with ATI graphic solution from major media worldwide.

Advantages:

  • Effective and zero-noise cooling;

  • Good overclocking potential;

  • Affordable cost;

  • Compact size;

  • Convenient set of interfaces for output.

EasyCOM - Optimal Price/Opportunity Award

Steel Review - 5 Stars Award

"...for the current generation graphics cards and gaming which is on the passive systems is no longer an issue, since it almost always works even without additional safety fan." Tom's Hardware

"As we can see, in an enclosure with internal cooling system relatively quiet, the Radeon HD 7750 from HIS iSilence 5 has the luxury of picking performance almost similar to those of the reference model AMD" PC INpact.com

" +Cooling system without any noise, the best heatpipe cooling system what was tested on overclockers.ua
 +Good performance
 +Best choice for people who need cooling system without noise" Overclockers.ua "Editors Choice - Original Design"

"We tested Crossfire, which always comes with a surprise... The use of these two passive-cooler cards can certainly add value." Tom's Hardware

Hardware Magazine

"The cooling performance of this compact card, is good." Hardware Magazine

"The card is observed with a maximum of 159 watts - very economical when you consider that we always measure the consumption of the entire test platform. When measuring the heat we are also surprised, at 60 degrees Celsius under full load you will not worry that the card overheats. HIS has done a really good job." PC Welt
